Epoxy Resin L 20 + Hardener EPH 161 1,25kg 1121042

Epoxy resin EPIKOTE™ L 20 + hardener EPIKURE™ 943 620g (100 - 200 min)

Item number: 1121071
EAN: 4044199315138

Epoxy resin EPIKOTE™ L 20 + hardener EPIKURE™ 943 (100 - 200 min)

Working pack:
The combination of epoxy resin EPIKOTE™ Resin L 20 with hardener EPIKURE™ Curing Agent 943 results in an extremely low viscosity epoxy resin system of medium reactivity with excellent impregnation and wetting properties towards glass, aramid and carbon fibers.

Application:
Due to its good impregnation properties, it is preferably used for the production of heavy-duty fiber composite components using the winding process.

Processing:
Processing time (from 20 °C to 25 °C): 100 - 200 minutes
Mixing ratio:
100 : 24 parts by weight EPIKOTE™ Resin L 20 : EPIKURE™ Curing Agent 943

Curing time:
- 8 - 10 h at room temperature, followed by heat curing for 8 - 10 h at 60 °C
- To shorten the curing time: 3 h at 30 - 40 °C + 8 -10 h at 60 °C
- For greatly improved thermoforming stability (TG approx. 110 °C):
- Curing as in 1. or 2. + post-curing 6 - 10 h at 120 °C with a temperature heating rate of 20K/h.

Technische Daten:
Physikalische Eigenschaften (zum Zeitpunkt der Herstellung):
- Eigenschaft EPIKOTE™
- Resin L20 EPIKURE™ Curing Agent 943
- Viskosität bei 25 °C in mPa*s 900 ± 150 13 ± 2
- Dichte bei 20 °C in g/cm³ 1,15 ± 0,01 0,92 ± 0,01
- Farbe (Gardner) < 3
- Epoxid-Equivalentgewicht in g/Equiv. 175.5 ± 3.5
- Amin-Equivalentgewicht in g/Equiv. 43
- Brechungsindex bei 25 °C 1.5495 ± 0.0030
- Topfzeit bei 20-25 °C in min 100-200

Materialkennwerte (Reinharz gehärtet)
Epoxidharz EPIKOTE™ Resin L 20 mit Härter EPIKURE™ Curing Agent 943
- Biegefestigkeit in MPa 545
- Biege-E-Modul in MPa 24.000
- Druckfestigkeit in MPa 380
- Schlagzähigkeit in mJ/mm2 220
- ILSS in MPa 38

Lieferumfang:

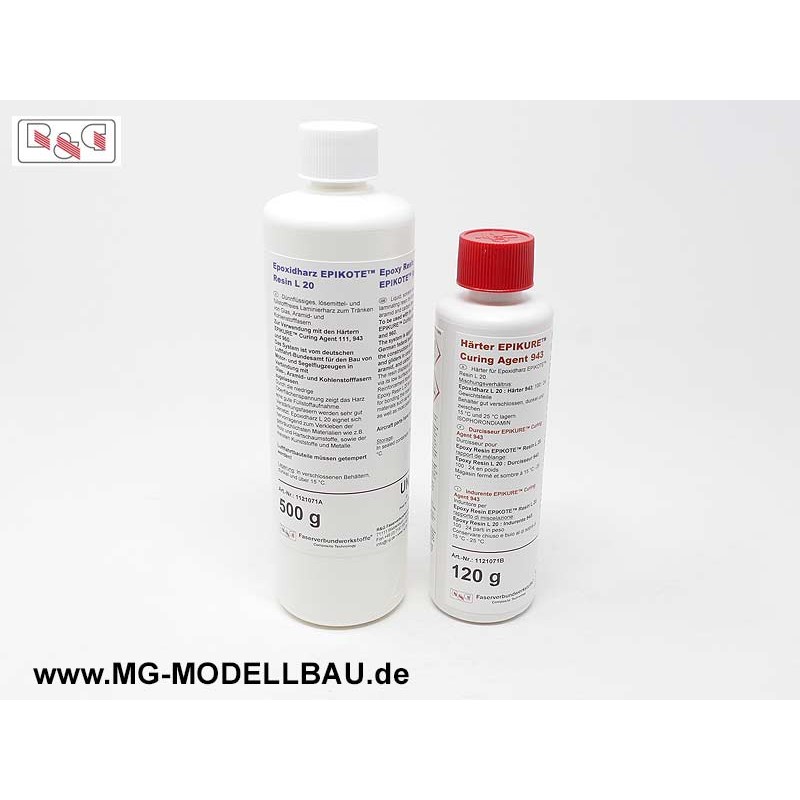

- Set Epoxidharz EPIKOTE™ L 20 + Härter EPIKURE™ 943 620g
